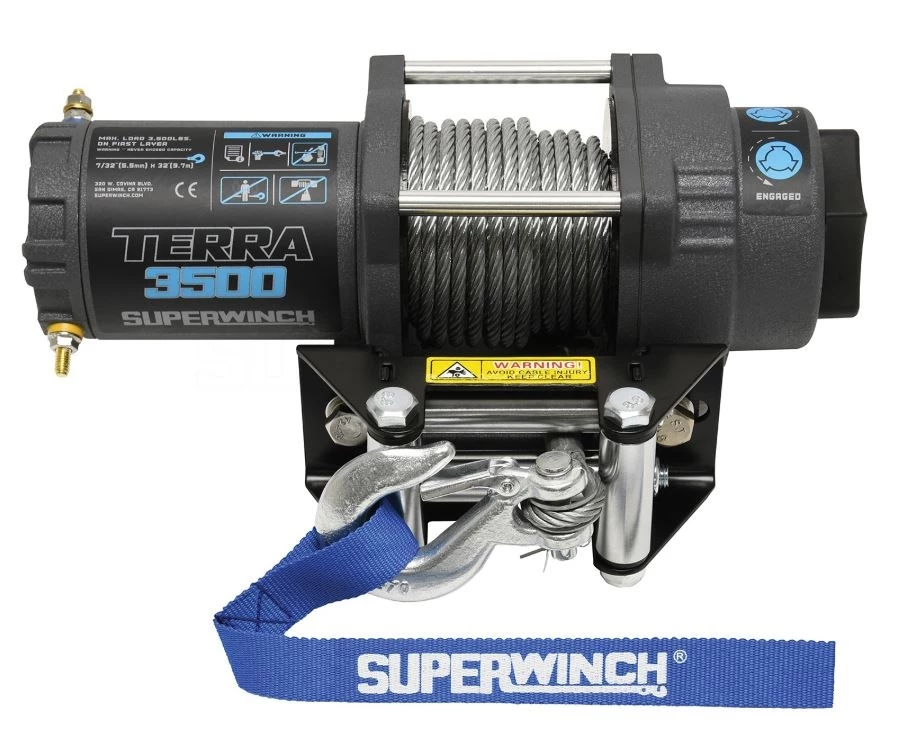

Superwinch Terra 3500 12V Wire Rope Winch

The Superwinch Terra 3500 is the standout performer in powersports ATV/UTV winching. It’s not a claim we make lightly and we back it up with stronger motors, wider gears, beefed up drums and durable steel cable. Terra 3500 winches come stock with both a 10’ sealed handheld remote as well as a sealed handle bar mounted rocker switch. Features gears that are 2x as wide as the next competitor. This means far better engagement plus longer life.

Features

• Rated line pull of 3,500 lbs

• 1.6 HP permanent magnetic motor

• 3-Stage planetary gearing with 198:1 ratio

• Sealed solenoid with circuit breaker

• Easy to engage ergonomic freespool control knob

• Wire rope measures 7/32in. x 32ft.

• Heavy-duty, clevis pinned, latched hook

• 4-way roller fairlead

• 10ft. rugged handheld remote control with handlebar mounted rocker switch

• Narrow drum allows easier mounting in tight spaces



Specifications
Brake: Automatic, 100% Load Holding
Clutch: Free-Spooling, Ergonomic Control
Fairlead: Heavy Duty 4-Way Roller
Gear Ratio: 198:1
Gearing: 3-Stage Planetary
Hook: Heavy-Duty, Clevis Pinned Latched
Motor: Sealed 1.6 HP Permanent Magnet
Mounting Bolt Pattern: 3.0in x 4.87in (76mm x 124mm)
Rated Line Pull: 3,500 lbs (1587.6 kg)
Remote: Sealed Hand-Held with 10ft cord
Rope: Steel Wire 7/32in x 32ft
Solenoid: Sealed Solenoid, Circuit Breaker Protected
Warranty: Limited Lifetime Mechanical, 3 Year Limited Electrical
